Indoor Smoking Areas

SP Area

Wood Veneer : Mahogany


Steel : Metal


Type : Semi Open


Capacity : 10 persons

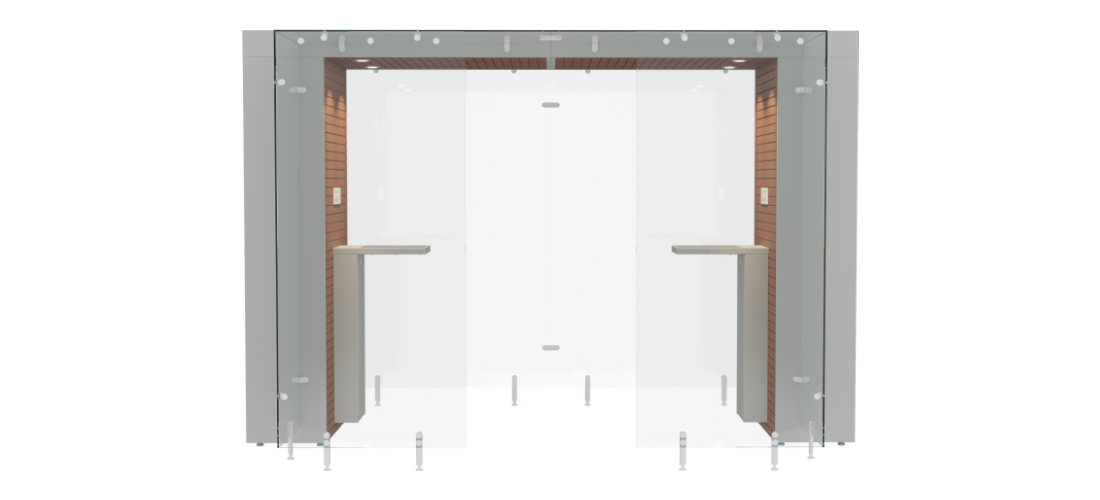

Mahogany and Metal Modular Smoking Area

Wood Veneer

Metal

Type

MahoganyMapleWalnutWhiteBlack

MetalGreyBlack

Semi Open  |  Door

To accommodate larger groups of simultaneous smokers our smoking cabins can be combined in pairs with glass panels. The powerful filtration system ensures fresh air both inside and outside the cabin.

Our SP Area cabins provide a comfortable atmosphere with adjoining ashtrays allowing easy conversation among users. Starting from 10 users they can be placed freely either in the middle of open spaces or alongside walls and in corridors.

As such the SP Area cabins with their almost limitless combinations offer a flexible, efficient and attractive alternative to dedicated smoking rooms. Sizes starting from 6.7 m2.

SP Area ELEVATION

SP Area PRODUCT INFORMATION

TECHNICAL INFORMATION
Dimensions (W x D x H) – Weight incl. filters 4000 x 2000 x 2200 mm – ≅ 920 kg
Main housing material Frame housing: Steel SPCC 1.5mm

Front: Medium Density Fiberboard (MDF)

Main housing colours Frame housing: Powder coated steel RAL 9005 (Black) or RAL 9006 (Grey) Other colours are optional

Front: Grey-Mahogany, Black-Mahogany, Grey-Maple, Black-Maple, Grey-Walnut and Black-Walnut

Glass 8 mm tempered glass
Fireproofing Non-flammable materials
Power requirements – Consumption 220-240 V, 50/60 Hz – Standby: ≤ 80 W – Max speed: ≤ 1000 W
Sound pressure/power per fan speed When in stand-by 41.5 dB – When running 49.5 dB
Fan motor Centrifugal, backward curved, IP54, Class “F”
Control Control unit for airflow, sensors, timers, doors and lights.
Air intake / outlet Dual suction from front panel and ceiling / Perforated slot hole from top roof
Air delivery 200-2400 m3/h
Air delivery (certified) 15-200 times/h
Leak tested Yes
Total system efficiency (certified) ≥ 99.95% for particles ≥ 0.3 microns (µm)
Fireproof ashtray system capacity



7,000 cigarettes. Ashtray with one inlet.  (Included with standard unit)

14,000 cigarettes. Two ashtrays with two inlets.

14,000 cigarettes. Large ashtray with one inlet.

28,000 cigarettes. Two large ashtrays with two inlets.

Safe ash handling system. Fireproof. No odours.

Simultaneous smokers 10 persons
Certification CE – According to DIN EN 13823, DIN EN 1364-1 – Tested and approved by BGIA

ISO certification in 2018: ISO 9001 and ISO 14001

FEATURES
Adjustability Variable airflow speeds for stand-by and running modes.
Power saving Sensor activation by entrance into the cabin reduces power consumption.
Modular construction Easy to reduce or expand cabin size. Freestanding and movable.
Variable door solutions Manual, semi automatic and automatic door systems.
Customisation LCD screen, foot rest, stickers, bottom profile set, laminated glass, colours, filters etc.
