Wood Veneer
Metal
Type
With our 2SP110 smoking cabin you will experience a high-performance quality product that will secure your environment, protection against passive smoking, dangerous gases and odour from cigarettes. Our smoking cabin are meticulously designed to ensure that smoke and odour stays within the cabin. The smoking cabin materials are selected and tested thoroughly to give the best performance, and with our unique design the smoking cabin truly excite all customers or employees.
By focusing on atmosphere and wellbeing, smoke cabins are building bridges between smokers and non-smokers allowing them to interact. Our smoking cabin makes it possible for smokers and non-smokers to stay in the same room and still interact without any disturbing from second hand smoke or odour.
The benefits of smoking cabin are plentiful. Producing clean air and eliminating passive smoking are only the main benefits. Other great benefits include time savings and cost reductions from shortened smoke breaks to better energy efficiency. Added to this are improved safety and fireproofing. Our smoking cabin also allowed along certain emergency exits and escape routes.
The smoking cabins starts from 4-6 users and the units can be extended with additional modules. The smallest units can be placed alongside walls. Sizes starting from 2.4 m2.
Why use Smoking Cabin
A smoke cabin benefits more than just cleaning the air. A safe, healthy and cost-effective solution that will make sure that non-smokers are not exposed for second hand smoke nor that the smokers are neglected. Furthermore, our solutions guarantee effective eliminations of gases, odour and other insalubrious particles. The reasons are plentiful and to hear more about them please feel free to contact us today.
The Design Behind Smoke Cabin
Door
Smokers can enter the smoke cabin by an automatic door, which also gives accessibility to those who are wheelchair bound.
Lights
The smoke cabin is equipped with LED spot light which automatic will turn on/off when people enter and leave the cabin.
Ashtray
The cigarettes are collected and contained in the certified fireproof and odourless aluminium ashtray.
Fan
Our cabins feature the most powerful, highly efficient, cost reducing fan up till now. The result is outstanding.

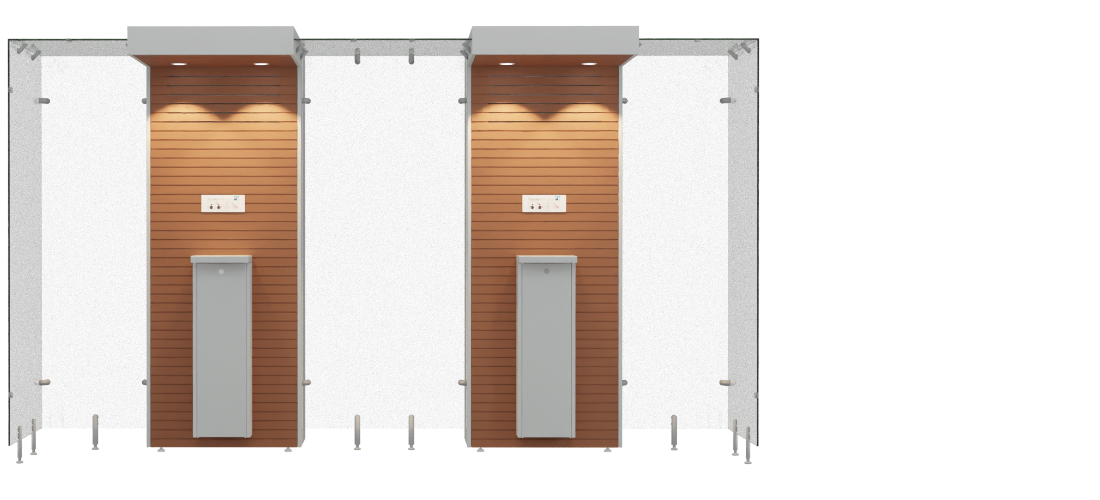

2SP110 ELEVATION
2SP110 PRODUCT INFORMATION
TECHNICAL INFORMATION |
Dimensions (W x D x H) – Weight incl. filters | 3700 x 1100 x 2200 mm – ≅ 620 kg |
Main housing material | Frame housing: Steel SPCC 1.5mm Front: Medium Density Fiberboard (MDF) |
Main housing colours | Frame housing: Powder coated steel RAL 9005 (Black) or RAL 9006 (Grey) Other colours are optional Front: Grey-Mahogany, Black-Mahogany,Grey-Maple, Black-Maple, Grey-Walnut and Black-Walnut |
Glass | 8 mm tempered glass |
Leak tested | Yes |
Simultaneous smokers | 4-6 persons |
Certification | ISO 9001:2015 and ISO 14001:2015. Fireproof ashtray tested by DBI – The Danish Institute of Fire and Security Technology. Tested and certified as a non-smoker protection system by I.F.I. Germany. |
FEATURES |
Adjustability | Variableairflow speeds for stand-by and running modes. |
Power saving | Sensor activation by entrance into the cabin reduces power consumption. |
Modular construction | Easy to reduce or expand cabin size. Freestanding and movable. |
Variable door solutions | Manual, semi automatic and automatic door systems. |
Customisation | LCD screen, foot rest, stickers, bottom profile set, laminated glass, colours, filters etc. |
OTHER SOLUTIONS
CERTIFICATIONS AND PROVEN TECHNOLOGY
Our filtration technology is proven and certified to stop pollutants. Smoke Solution’s Pro HEPA Filter is tested and certified by an independent third-party lab to effectively filter gases and particles. The filters thoroughly designed and developed to ensure the best filtration.
We individually test each and every Pro HEPA Filter to ensure the best performance and that it meets our strict specifications.
Total filter efficiency : Ozonators 0%, Ionizers 2%, Ordinary HEPA 36%, Smoke Solution Pro HEPA Filter 99,5%
We strive to be the best at what we do. This is why our products are continuously tested, approved and certified by independent, international test laboratories. Smoke Solution’s cabins and units have been approved and certified by established, independent, international institutions regarding fire safety and level of filtration of gases and particles. Continuous testing furthermore guarantees that our products live up to their high standard every time.
Fireproof ashtray tested and certified by DBI – The Danish Institute of Fire and Security Technology.
Tested and certified by IFA. ISO certification: ISO 9001 and ISO 14001.
CE according to DIN EN 13823, DIN EN 1364-1
THE TECHNOLOGY BEHIND THE SMOKE CABIN
1-2
In order to create a smoke free environment, it is necessary to capture the smoke before it leaves the cabin and due to our judicious system, the smoking cabin goes in the desired direction and through our very efficient filtration.
2-3
Our filtration system ensures that even the smallest particles are eliminated. The smoke cabin’s design makes it possible for the gases and particles from tobacco smoke goes through the filter and comes out as clean, healthy breathable air. The pollutants remain trapped in the filters. Regular maintenance guarantees that the system is running smoothly and effectively.
4
The certified, fireproof and odourless ashtray in aluminium contains the disposal of ash and cigarette ends.
