Indoor Smoke Cabin

3SP160

Wood Veneer : Mahogany


Steel : Metal


Type : Open


Capacity : 10-12 persons

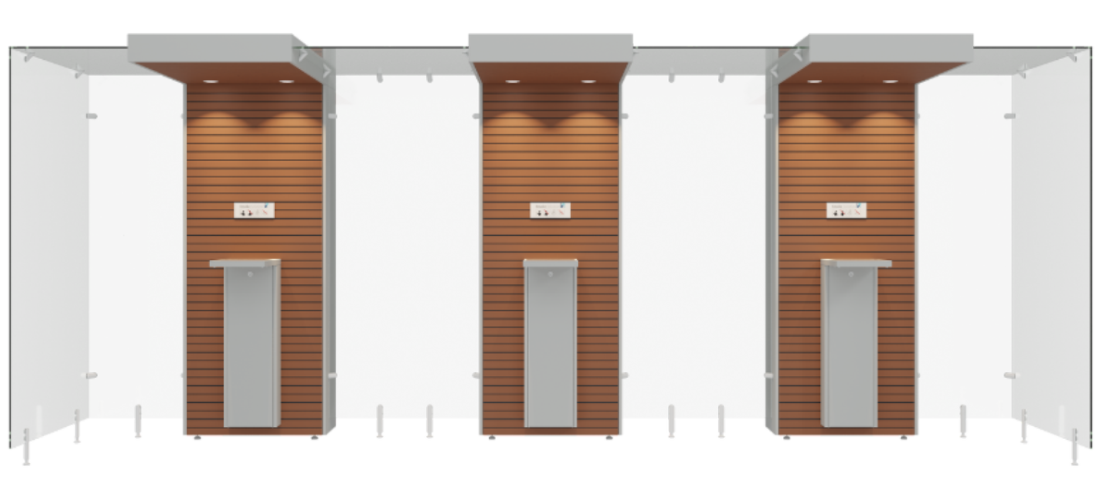

Mahogany and Metal - Open Modular Smoke Cabin

Wood Veneer

Metal

Type

MahoganyMapleWalnutWhiteBlack

MetalGreyBlack

Open  |  Semi Open  |  Door

With our 3SP160 smoke cabin, you will experience a high-performance quality product that will secure your environment, protection against passive smoking, dangerous gases and odour from cigarettes. Our smoke cabin meticulously designed to ensure that smoke and odour stays within the cabin. The smoke cabins materials are selected and tested thoroughly to give the best performance, and with our unique design the smoke cabins truly excite all customers or employees.

By focusing on atmosphere and wellbeing, smoke cabins are building bridges between smokers and non-smokers allowing them to interact. Our smoking cabins makes it possible for smokers and non-smokers to stay in the same room and still interact without any disturbing from second hand smoke or odour.

With smoking cabins the benefits are plentiful. Producing clean air and eliminating passive smoking are only the main benefits. Other great benefits include time savings and cost reductions from shortened smoke breaks to better energy efficiency. Added to this are improved safety and fireproofing. Our smoking cabins are also allowed along certain emergency exits and escape routes.

The smoking cabins starts from 10-12 users and the units can be extended with additional modules. The smallest units can be placed alongside walls. Sizes starting from 3.6 m2.

Why use Smoking Cabin

A smoke cabin benefits more than just cleaning the air. A safe, healthy and cost-effective solution that will make sure that non-smokers are not exposed for second hand smoke nor that the smokers are neglected. Furthermore, our solutions guarantee effective eliminations of gases, odour and other insalubrious particles. The reasons are plentiful and to hear more about them please feel free to contact us today.

The Design Behind Smoke Cabin

Door

Smokers can enter the smoke cabin by an automatic door, which also gives accessibility to those who are wheelchair bound.

Lights

The smoke cabin is equipped with LED spot light which automatic will turn on/off when people enter and leave the cabin.

Ashtray

The cigarettes are collected and contained in the certified fireproof and odourless aluminium ashtray.

Fan

Our cabins feature the most powerful, highly efficient, cost reducing fan up till now. The result is outstanding.

Smoke Cabin in Airports
Smoke Cabin in Restaurant
Indoor Smoke Cabin

3SP160 ELEVATION

3SP160 PRODUCT INFORMATION

TECHNICAL INFORMATION
Dimensions (W x D x H) – Weight incl. filters5400 x 1600 x 2200mm – ≅ 970 kg
Main housing materialFrame housing: Steel SPCC 1.5mm

Front: Medium Density Fiberboard (MDF)

Main housing coloursFrame housing: Powder coated steel RAL 9005 (Black) or RAL 9006 (Grey) Other colours are optional

Front: Grey-Mahogany, Black-Mahogany,Grey-Maple, Black-Maple, Grey-Walnut and Black-Walnut

Glass8 mm temperedglass
Leak testedYes
Simultaneous smokers10-12 persons
CertificationISO 9001:2015 and ISO 14001:2015. Fireproof ashtray tested by DBI – The Danish Institute of Fire and Security Technology.
Tested and certified as a non-smoker protection system by I.F.I. Germany.
FEATURES
AdjustabilityVariableairflow speeds for stand-by and running modes.
Power savingSensor activation by entrance into the cabin reduces power consumption.
Modular constructionEasy to reduce or expand cabin size. Freestanding and movable.
Variable door solutionsManual, semi automatic and automatic door systems.
CustomisationLCD screen, foot rest, stickers, bottom profile set, laminated glass, colours, filters etc.

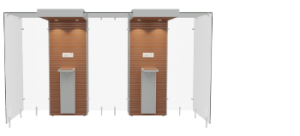

OTHER SOLUTIONS


CERTIFICATIONS AND PROVEN TECHNOLOGY


Smoke Solution HEPA Filter

Our filtration technology is proven and certified to stop pollutants. Smoke Solution’s Pro HEPA Filter is tested and certified by an independent third-party lab to effectively filter gases and particles. The filters thoroughly designed and developed to ensure the best filtration.

We individually test each and every Pro HEPA Filter to ensure the best performance and that it meets our strict specifications.



Total filter efficiency : Ozonators 0%, Ionizers 2%, Ordinary HEPA 36%, Smoke Solution Pro HEPA Filter 99,5%

We strive to be the best at what we do. This is why our products are continuously tested, approved and certified by independent, international test laboratories. Smoke Solution’s cabins and units have been approved and certified by established, independent, international institutions regarding fire safety and level of filtration of gases and particles. Continuous testing furthermore guarantees that our products live up to their high standard every time.

Fireproof ashtray tested and certified by DBI – The Danish Institute of Fire and Security Technology.
Tested and certified by IFA. ISO certification: ISO 9001 and ISO 14001.
CE according to DIN EN 13823, DIN EN 1364-1

THE TECHNOLOGY BEHIND THE SMOKE CABIN


how smoking cabin by smoke solution works

1-2

In order to create a smoke free environment, it is necessary to capture the smoke before it leaves the cabin and due to our judicious system, the smoke cabin goes in the desired direction and through our very efficient filtration.



2-3

Our filtration system ensures that even the smallest particles are eliminated. The smoke cabin’s design makes it possible for the gases and particles from tobacco smoke goes through the filter and comes out as clean, healthy breathable air. The pollutants remain trapped in the filters. Regular maintenance guarantees that the system is running smoothly and effectively.



4

The certified, fireproof and odourless ashtray in aluminium contains the disposal of ash and cigarette ends.
